Phase2 Microwave supplies a wide range of components and subsystems for the Commercial and Military Ground Segments for the Satcoms Market.




Sat Comms



Phase2 Microwave supplies a wide range of components and subsystems for the Commercial Satcoms Market.

Most devices are exactly designed using in-house software and manufactured from silver plated Aluminium.



At C band Radar rejection filters are available.

At Ku Band Bandpass Filters, Transmit reject filters and diplexers, including Receive Diplexers, together with Transmit Receive feed systems for small ground stations .

Cross guide Couplers and transitions are standard components.


160212 0547 phase2mw


 Ka Band components include filters, both bandpass and lowpass, diplexers and couplers.





Recent Projects



Phase2 Microwave supplies a wide range of components and subsystems for the Commercial Satcoms Market.

Most devices are exactly designed using in-house software and manufactured from silver plated Aluminium.



At C band Radar rejection filters are available.

At Ku Band Bandpass Filters, Transmit reject filters and diplexers, including Receive Diplexers, together with Transmit Receive feed systems for small ground stations .

Cross guide Couplers and transitions are standard components.


160212 0547 phase2mw



 Ka Band components include filters,  highpass, bandpass and lowpass, diplexers and couplers.

Products, Service & Capabilities




X Band

  • Bandpass and Lowpass filters are available in the 9.3 to 9.6GHz band for powers up to 100kW peak (dry air at +400mB)
  • 120308 8164 Phase2MW

C Band

  • Various Bandpass and Lowpass filters are available in the 5.4 to 5.7GHz band for powers up to 500kW peak (dry air +400mB)
  • 120308 8119 Phase2MW

S Band

  • Bandpass and Absorptive Lowpass filters are available for powers above 1MW peak.


Sat Comms

  • Phase2 Microwave can supply radar filters from 1 to 50Ghz but has concentrated on 2.7 to 3.1GHz S Band components.
  • Standard waveguide Bandpass filters and absorptive lowpass flters are available for high power surveillance radars.

The use of the 2.5 to 2.69Ghz LTE Band by cellular operators interferes with the S Band radar receivers and has stimulated a major redesign of the filtering requirements.

Phase2 Microwave provide a large number of coaxial filters for the transmit and receive chains of phased array radars, handling powers up to 2.8kW peak.



Case Studies



Q1186  WG17 Highpass TX Filter

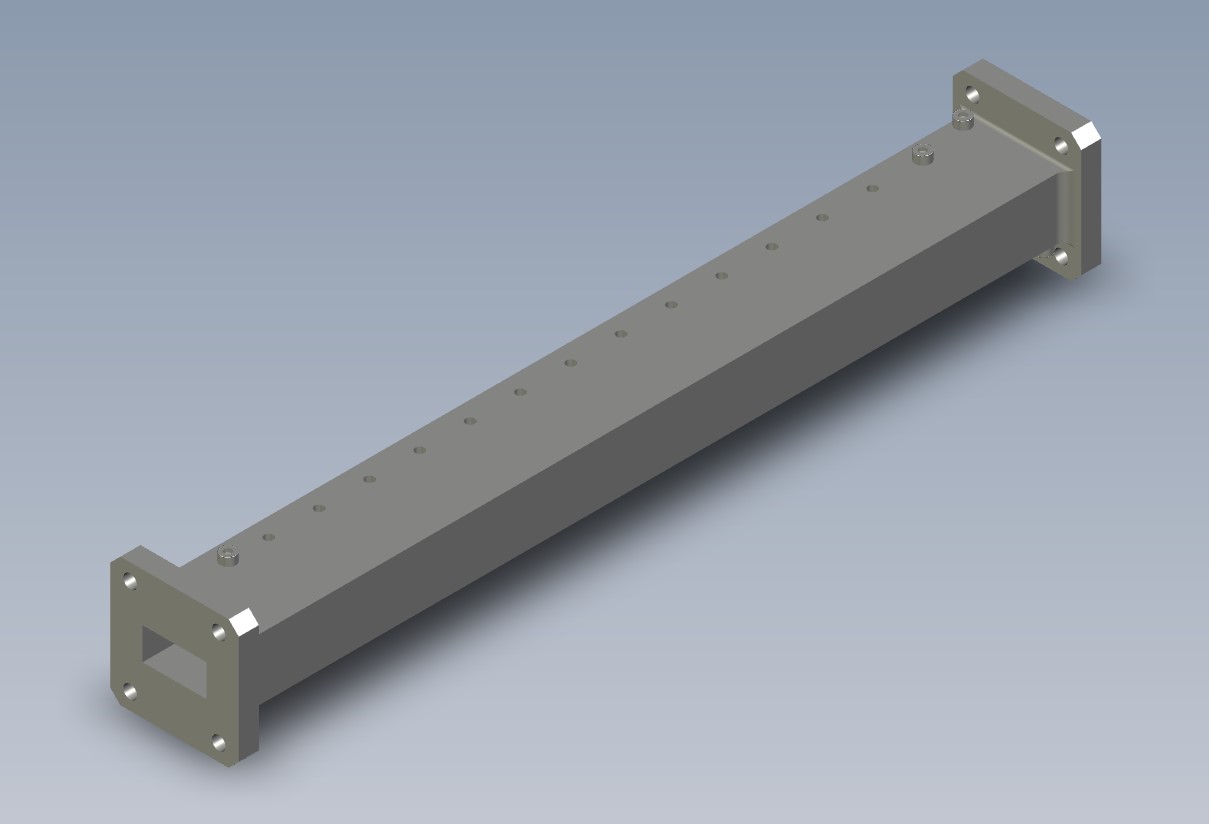

Q1186 High Pass TX Filter
