Waveguide Bends

Product Overview

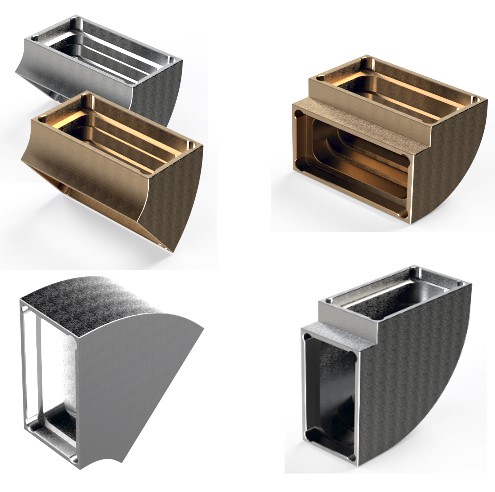

Promo Machined Bends



 Phase2 Microwave's offer a range of machined from solid Waveguide E & H plane bends which have the benefit of being non-porous and suited to pressurised systems,  unlike some cast alternatives. As    standard we offer 45 and 90 Degree bends although 30, 60, and 135 Degree bends are available on request, along with bespoke bends that we can be designed as required.

Our bends can be supplied in Aluminium or Brass, just specify on the order. We  can also supply with lengths of waveguide soldered or brazed in place with your specified flanges, please see our Waveguide Bend Assembly page for more details.



                     Request a quotation



45 Degree E & H Bends

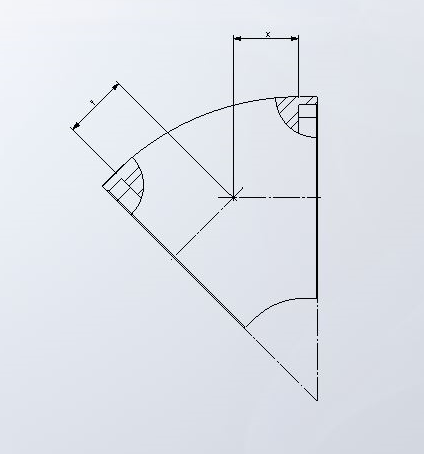

                                                                           45 H BEND WAVEGUIDE



Part Number Waveguide Size

Frequency

(GHz)

VSWR Bend Plane Dim x Dim Y
 006558 WG10 2.60-3.95  1.05 E Contact Us  Contact Us
 006571 WG10 2.60-3.95   1.05  Contact Us Contact Us
006559  WG11A 3.30-4.90   1.05  E  Contact Us Contact Us
 006572 WG11A 3.30-4.90   1.05 Contact Us  Contact Us
 006560 WG12 3.95-5.85   1.05  E  Contact Us Contact Us
 006573 WG12 3.95-5.85   1.05  H Contact Us  Contact Us
 006561 WG13 4.90-7.05   1.05  E Contact Us  Contact Us
 006574 WG13 4.90-7.05   1.05  H  Contact Us Contact Us
 006562 WG14 5.85-8.20  1.05   E  Contact Us Contact Us
 006575 WG14 5.85-8.20  1.05   H  Contact Us  Contact Us
 006563 WG15 7.05-10.00  1.05 Contact Us  Contact Us
 006576 WG15  7.05-10.00   1.05   H  Contact Us Contact Us
 006564 WG16 8.20-12.40  1.05  E  Contact Us Contact Us
006577 WG16 8.20-12.40 1.05 H Contact Us Contact Us
006565 WG17 10.00-15.00   1.05 E Contact Us  Contact Us
 006578 WG17 10.00-15.00   1.05 H  Contact Us Contact Us
006566  WG18 12.40-18.00   1.05 E Contact Us   Contact Us
0 06579 WG18 12.40-18.00   1.05 H  Contact Us Contact Us
 006567 WG19 15.00-22.00  1.05  E  Contact Us Contact Us
006580 WG19 15.00-22.00  1.05  H  Contact Us Contact Us
 006568 WG20 18.00-26.50   1.05 E  Contact Us Contact Us
006581 WG20 18.00-26.50  1.05 H  Contact Us Contact Us
 006569  WG21 22.00-33.00   1.05  E  Contact Us Contact Us
006582  WG21 22.00-33.00  1.05  H  Contact Us Contact Us
006570   WG22 26.50-40.00   1.05 E  Contact Us Contact Us
006583  WG22  26.50-40.00   1.05 H  Contact Us Contact Us

   90 Degree E & H Bends

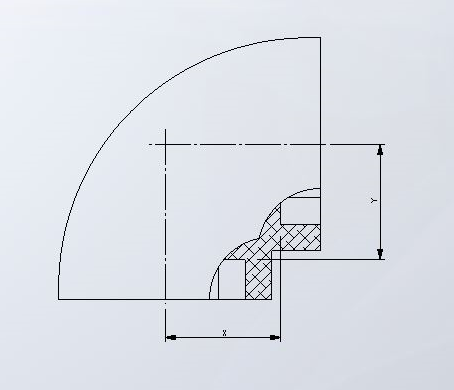

                                                       90 E BEND WAVEGUIDE



Part Number Waveguide Size

Frequency

(GHz)

VSWR Bend Plane Dim X Dim Y
006532   WG10 2.60-3.95   1.05  E Contact Us   Contact Us
 006545  WG10 2.60-3.95   1.05 Contact Us  Contact Us
 006533 WG11A  3.30-4.90    1.05  E  Contact Us  Contact Us
006546   WG11A  3.30-4.90   1.05  H  Contact Us Contact Us
 006534  WG12  3.95-5.85   1.05  E  Contact Us Contact Us
 006547 WG12   3.95-5.85   1.05  H  Contact Us Contact Us
006535  WG13  4.90-7.05    1.05  E  Contact Us Contact Us
006548   WG13 4.90-7.05    1.05  H Contact Us  Contact Us
 006536  WG14 5.85-8.20   1.05   E  Contact Us Contact Us
006549   WG14  5.85-8.20  1.05   H  Contact Us Contact Us
006537 WG15   7.05-10  1.05  Contact Us Contact Us
 006550 WG15 7.05-10  1.05 H Contact Us Contact Us
 006538 WG16  8.20-12.40    1.05  E  Contact Us  Contact Us
 006551 WG16  8.20-12.40    1.05  H  Contact Us  Contact Us
 006539  WG17 10.00-15.00   1.05   E  Contact Us Contact Us
 006552  WG17  10.00-15.00   1.05  H  Contact Us Contact Us
 006540  WG18 12.40-18.00   1.05  E  Contact Us Contact Us
 006553  WG18 12.40-18.00    1.05  H  Contact Us Contact Us
006541   WG19  15.00-22.00   1.05  E  Contact Us  Contact Us
 006554  WG19 15.00-22.00    1.05  H  Contact Us Contact Us
006542   WG20 18.00-26.50   1.05   E  Contact Us Contact Us
006555   WG20  18.00-26.50  1.05   H  Contact Us Contact Us
 006543  WG21  22.00-33.00  1.05   E  Contact Us Contact Us
006556  WG21 22.00-33.00  1.05   H  Contact Us Contact Us
006544   WG22  26.50-40.00  1.05   E Contact Us  Contact Us
 006557 WG22  26.50-40.00  1.05   H Contact Us  Contact Us
